低频卡（频点：125KHZ)
 |
 |
 |
|
|
厚卡 |
手表卡 |

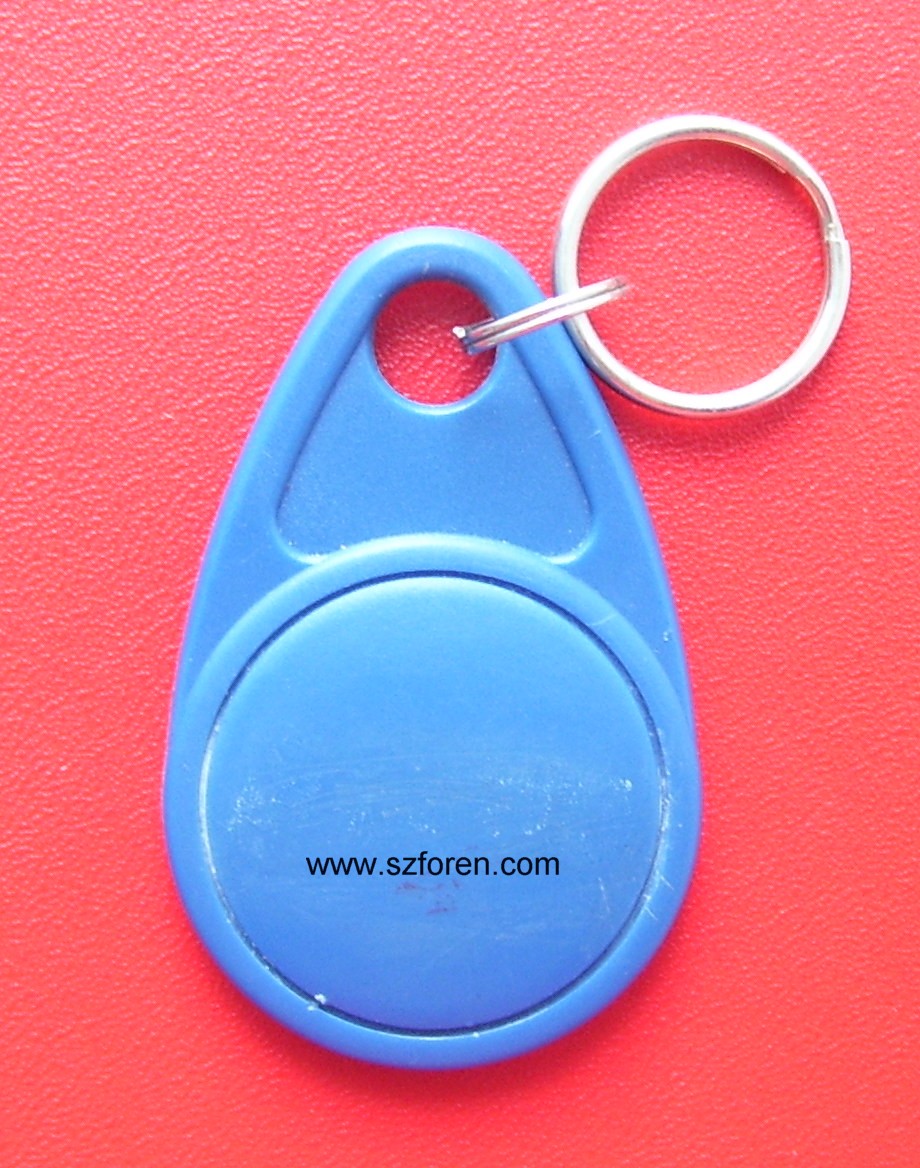

钥匙扣卡 |
INLAY |
 |
 |
 |
可选芯片：
-
EM4100/EM4102
-
EM4150/EM4450
-
EM4469/EM4569
-
EM4205/EM4305
|
| 薄卡 |
薄卡 |
币形卡 |
动物RFID标签（频点：134.2KHZ）
|
 |
 |
 |
 |
|
|

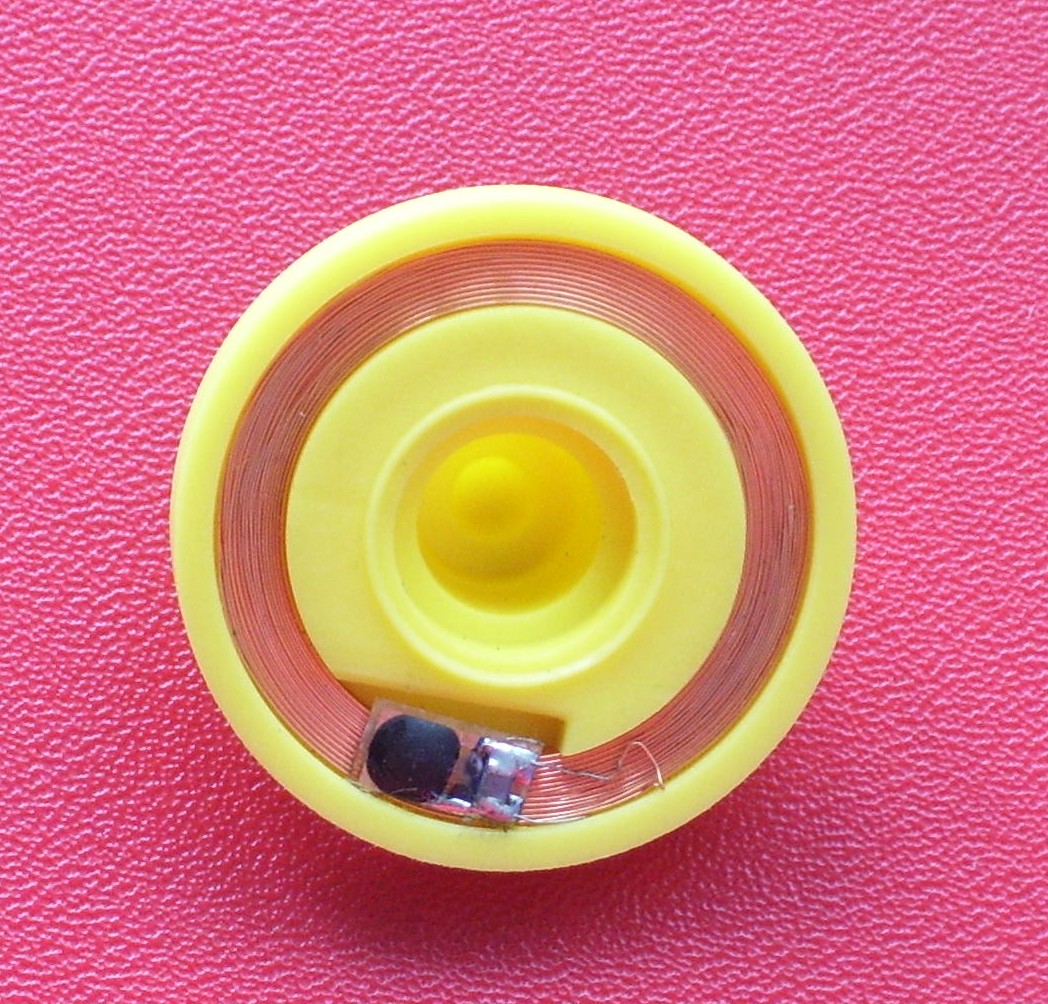

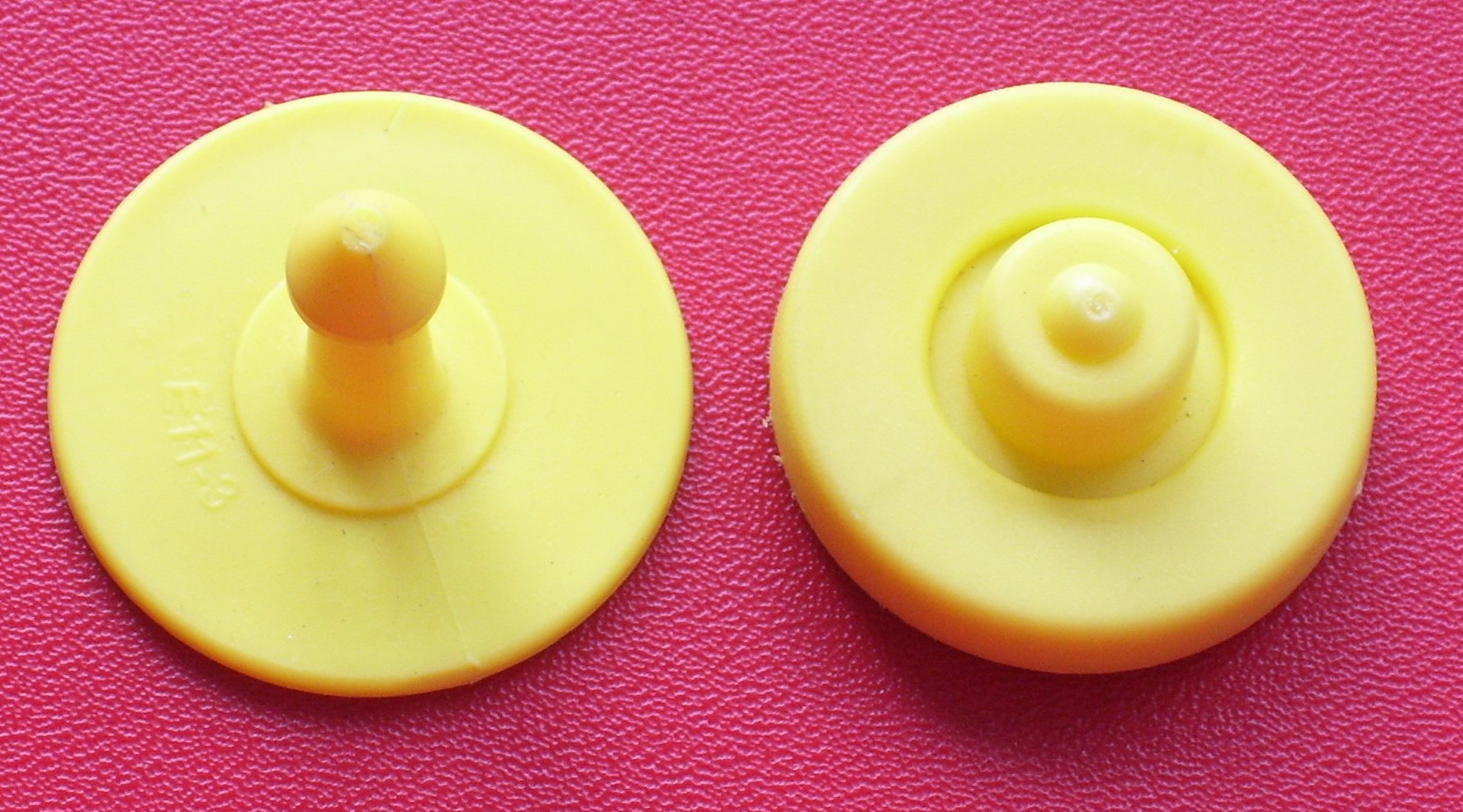

家畜耳标FR12102A |

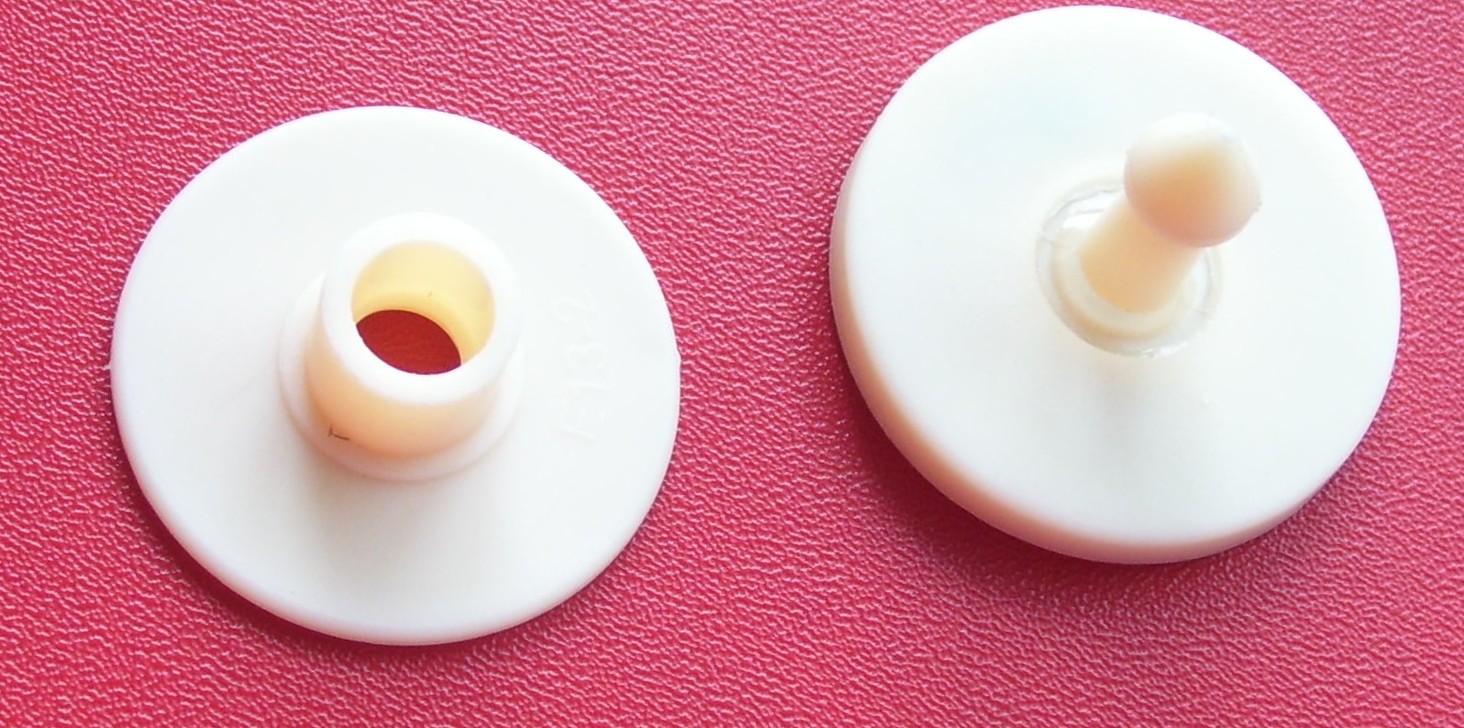

家畜耳标FR12102B |
INLAY |
实际应用 |
|
SPECIFICATIONS
-
Approvals:
ISO 11784 and ISO 11785
-
Construction:
High-grade polyurethane. All tags are manufactured in
an ISO 9002 approved facility.
-
Frequency:
134.2 kHz
-
Read range:
Up to 4feet at optimal tag orientation depending on
antenna
-
Temperature Range:
-25C to +50 C
-
Dimensions:
30mm
diameter, 7
mm
depth
-
Weight:
8 grams, 10 grams with stud.
-
Power:
Passive device energized using an ISO compliant
reader.
-
Installation:
2-piece Tamper-Proof ear tag system with
- read only or read&write with
512bits EEPROM memory
|
|
 |
SPECIFICATIONS
-
Approvals:
ISO 11784 and ISO 11785
-
Construction: GLASS.
All tags are manufactured in an ISO 9002 approved facility.
-
Frequency:
134.2 kHz
-
Read range:
Up to
2inch
at optimal tag orientation depending on antenna
-
Temperature Range:
-25C to +50 C
-
Dimensions:
2mm
diameter,
12mm
long
-
Weight:
0.1
grams
-
Power:
Passive device energized using an ISO compliant
reader.
-
Installation:
inject glass
tag into pet body with injector
- read only or read&write with
512bits EEPROM memory
|
|

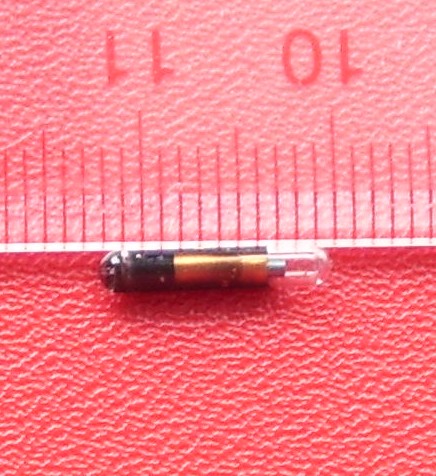

| 宠物玻璃管RFID标签 |
高频标签
|
 |
 |
|
|
超高频标签（频点：900M-2.4G)
inlay |

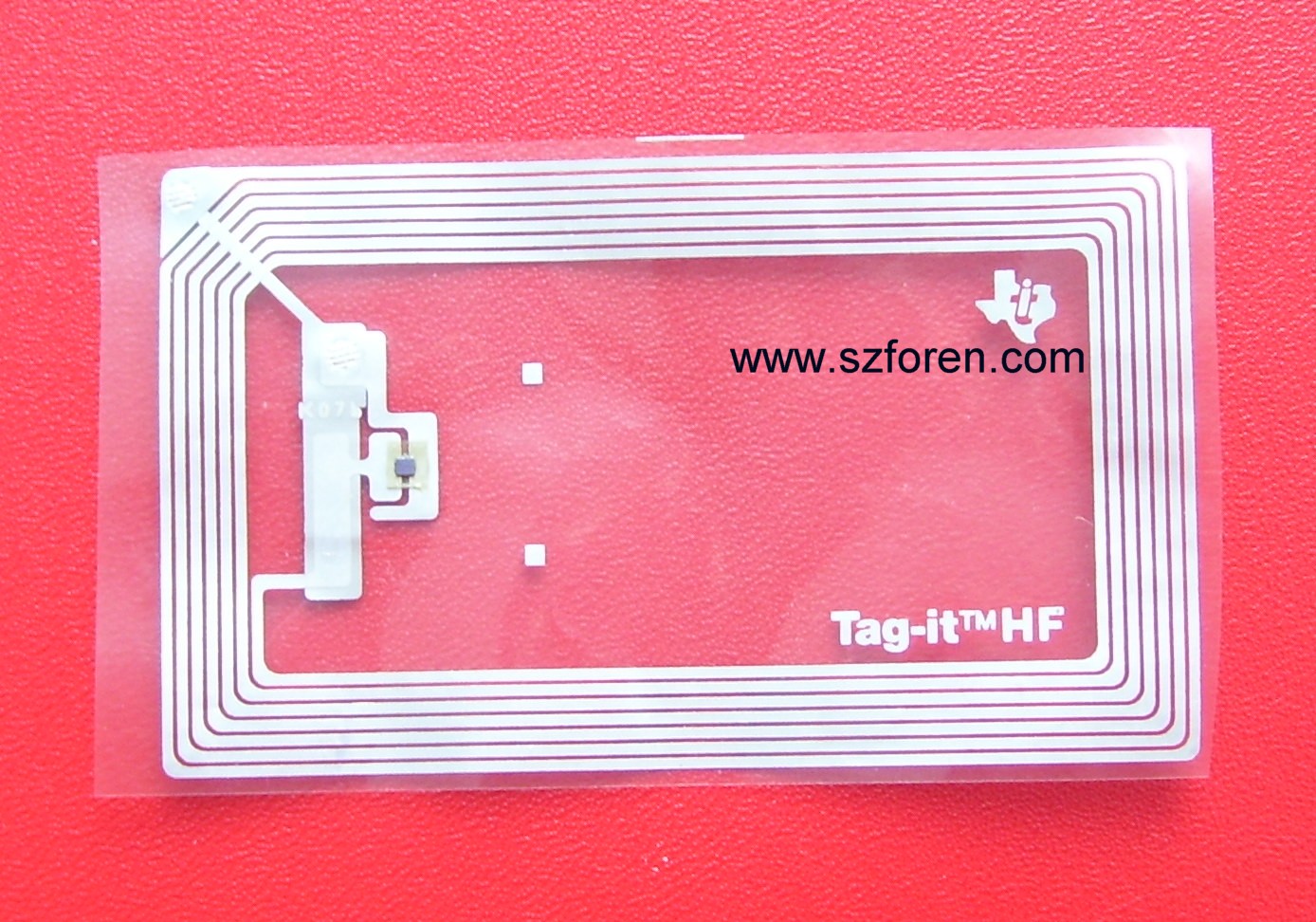

高频卡/标签（频点：13.56MHZ）inlay |
|
| 可选以下芯片：
|
可选以下芯片：
- EM4006
- ICODE1/2
- EM4034
- EM4135
|
|
|
